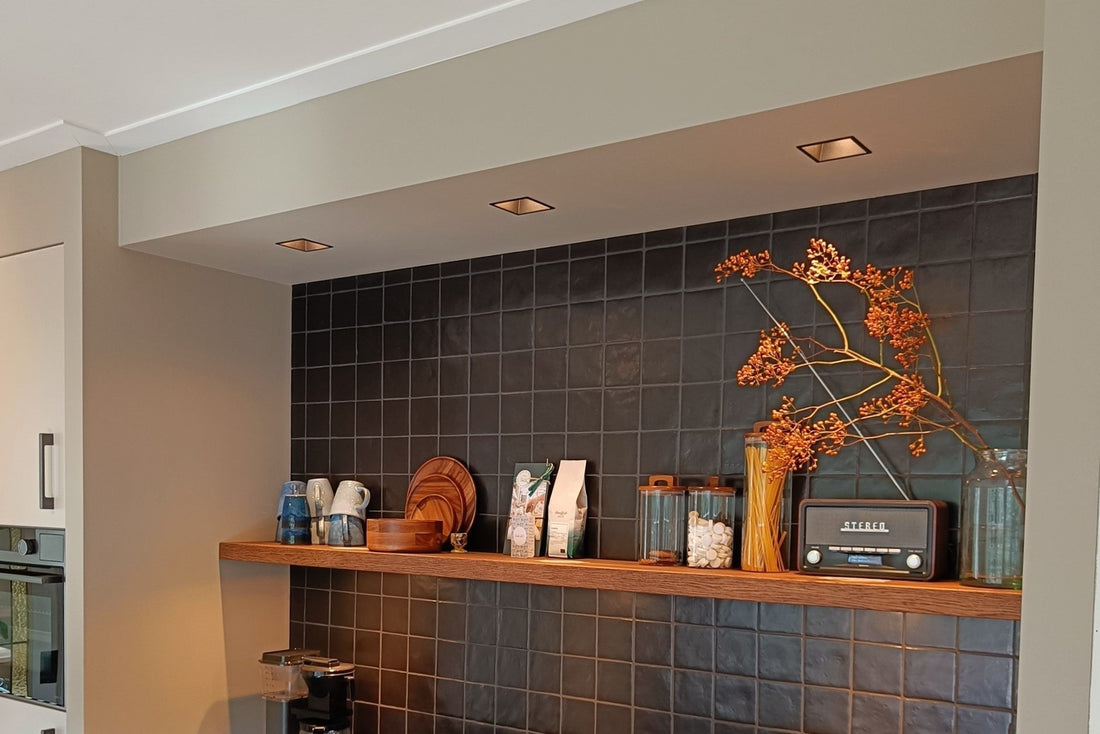

Lowering a Ceiling for LED Recessed Spotlights: Here's How to Do It

Do you want to install LED recessed spotlights in the ceiling during a renovation? Then a suspended ceiling is often a practical and sleek solution. Above the plasterboards, there will be space for the fixtures, wiring, fittings, and any LED drivers.

Lowering a ceiling requires good preparation. You need to think in advance about the position of the spotlights, the required installation depth, and the electrical connection. In this blog, we explain step by step what you need to consider.

First, determine which recessed spotlights you want to install

Preferably choose the recessed spotlights before starting the framework. The required space above the ceiling varies per type of spotlight.

Pay particular attention to:

• the installation depth of the fixture;
• the height of the light source and fitting;
• the dimensions of any LED driver;
• the required cut-out size;
• the external dimensions of the spotlight;
• the possibility of looping through wiring.

For a GU10 recessed spotlight, you must take into account the combined height of the fixture, the GU10 light source, and the fitting. A spotlight with a fixed LED module can sometimes be shallower, but often has a separate driver that needs to be placed above the ceiling.

Through our collection of all recessed spotlights you can specifically search by installation depth, color, external dimensions, and cut-out size, among other things.

Create a lighting plan in advance

Before the ceiling is closed, determine where the spotlights should be placed. Think not only about an even distribution, but especially about the function of the light.

For example, you can use recessed spotlights for:

• general room lighting;
• lighting above a kitchen counter;
• illuminating a wall;
• accent lighting for art or furniture;
• lighting in a hallway or walkway.

The correct distance between the spotlights depends on the light output, beam angle, ceiling height, and application. A fixed distance is therefore not suitable for every situation.

In homes, a mutual distance of approximately 80 to 150 cm is often applied, but for accent lighting, spotlights can be placed closer together or closer to a wall.

Installing framing or furring strips

After removing the existing ceiling and possibly applying insulation, you can start with the framing. This is the wooden or metal frame to which the plasterboards are attached.

First, check if the existing ceiling is straight and level. Any height differences can be corrected during the installation of the framing.

For a wooden frame, planed softwood battens are usually used. The mutual distance depends on the type of plasterboard, the board thickness, and the mounting direction. A distance of approximately 30 cm is often maintained, but always follow the processing instructions for the chosen ceiling board.

When installing the framing, ensure that there is enough free space for the recessed spotlights with the desired installation depth. Also, take into account beams, pipes, insulation material, and ventilation provisions.

Installing wiring for recessed spotlights

Before you mount the plasterboards, the electrical installation must be prepared. Determine where the power supply comes from and how the cables are routed to the different spotlights.

The wiring can be laid, for example, through a fixed PVC pipe or a suitable flexible installation pipe. For many recessed spotlights, the power supply can be looped through. The cable then runs from the first spotlight to the next spotlight.

Ensure that:

• the cables are in place at the correct positions;
• connections are accessible and safely made;
• any drivers remain accessible after installation;
• wiring does not run tightly along sharp edges;
• there is sufficient cable length to connect the spotlight.

Work on the electrical installation must be carried out safely and according to applicable regulations. Always switch off the power during work and, if in doubt, have the connection carried out or checked by a certified installer.

Consider LED drivers

For recessed spotlights with a fixed LED module, a separate driver is often supplied. Check in advance whether this driver fits through the cutout of the spotlight.

If the driver does not fit through the hole, it must be placed before the ceiling is closed. In that case, ensure that the driver remains accessible later for maintenance or replacement.

Do not place a driver directly against insulation material, unless the manufacturer explicitly states that this is permitted.

Placing plasterboards against the ceiling

Plasterboards are available in various finishes. Choose a board that suits the space and the desired finish.

There are boards for, among other things:

• dry living areas;
• damp rooms;
• plasterwork;
• direct paint finish;
• fire-resistant applications.

Calculate in advance how many boards you need and determine a laying plan to avoid unnecessary cutting waste. Preferably mount the boards with staggered joints.

Attach the plasterboards perpendicularly to the framing with suitable plasterboard screws. The correct screw length depends on the thickness of the board and the framing used.

Screw the screws slightly recessed into the board, but prevent the cardboard from being completely damaged.

Finishing joints, plastering or painting

After installing the plasterboards, the ceiling can be finished. Many ceilings are completely plastered, but painting is also possible.

Do you want to paint the plasterboards directly? First, fill the joints and screw holes with a suitable filler. Finish the joints with joint tape where necessary and sand the surface smooth.

Then apply a suitable primer. Plasterboards and joint fillers can be highly absorbent, which can cause paint to dry unevenly without pre-treatment.

After that, you can finish the ceiling with ceiling or wall paint.

If you choose white recessed spotlights, you can match the ceiling color to the color of the fixture. Keep in mind that different shades of white may be visible next to each other.

Making holes for the recessed spotlights

Preferably, only make the holes after the ceiling has been plastered or painted. This prevents the cutouts from deforming or being partially filled in during finishing.

First, recheck the position of each spotlight. For round recessed spotlights, use a hole saw with exactly the right diameter. For square recessed spotlights, you can use a suitable template, multi-tool, or special square hole saw.

When sawing, pay attention to the framing and the previously laid wiring. Saw calmly and prevent cables behind the plasterboard from being damaged.

Then pull the cable through the opening, connect the spotlight, and install the fixture according to the mounting instructions.

Carefully check the cut-out size

The cut-out size is not the same as the external dimension of the recessed spotlight.

The cut-out size determines how large the opening needs to be. The external dimension determines which part of the fixture remains visible after installation and how much of the opening is covered.

It is better not to make the hole larger than prescribed. A hole that is too small can be carefully adjusted, while a hole that is too large is often difficult to repair.

In summary

Lowering a ceiling for recessed spotlights begins with choosing the right fixture. Once the installation depth, cut-out size, and position of the spotlights are known, you can adapt the framing and electrical installation accordingly.

Pay particular attention to:

• sufficient space above the ceiling;
• a pre-determined lighting plan;
• safe and accessible wiring;
• sufficient space for light sources and drivers;
• the correct ceiling boards;
• accurately cut openings.

With good preparation, you will get a sleek ceiling in which the lighting is calmly and professionally integrated.

Would you rather not lower the ceiling? Then track lighting can be a practical alternative. With this, the fixtures remain below the existing ceiling and no extra installation space needs to be created.
